The papermaking industry generates a large amount of sludge during the production process. This type of sludge has a complex composition, containing fibers, fillers, additives and a small amount of pollutants. It is characterized by high moisture content, high viscosity and difficulty in dewatering. If not properly treated, it will not only cause waste of resources, but also aggravate environmental pollution. The application of sludge enhancers in the deep dewatering of papermaking sludge provides an efficient and economical solution to this problem.
I. Characteristics and Dewatering Difficulties of Papermaking Sludge
Papermaking sludge mainly comes from the processes of pulping and papermaking. According to its source, it can be classified into pulping sludge, waste paper deinking sludge and papermaking wastewater sludge. Its prominent characteristics are manifested as: extremely high moisture content, usually above 95%, and in some cases even reaching 98%-99%. It contains a large number of fine fibers and colloidal particles. These particles carry charges on their surfaces and repel each other to form a stable colloidal system, making it difficult for water to escape. It has a relatively high viscosity and is prone to clogging the filter cloth during the dehydration process, reducing the operational efficiency of the dehydration equipment. In addition, the sludge may also contain residual chemical agents, further increasing the difficulty of dewatering. Traditional dehydration methods such as natural sun-drying and ordinary mechanical filtration can often only reduce the moisture content to about 80%, which cannot meet the requirements of deep dehydration and subsequent treatment.
Different types of papermaking sludge also have differences in their characteristics. The content of lignin and cellulose in pulping sludge is relatively high, and its structure is relatively loose. However, due to the presence of a large amount of fibers, its viscosity remains relatively high. Waste paper deinking sludge contains ink particles and a relatively large amount of chemical additives. The colloid stability is stronger, and the dewatering difficulty is greater. The sludge composition of papermaking wastewater is more complex, greatly influenced by production raw materials and processes, and the water quality fluctuates significantly, bringing more uncertainties to the dewatering treatment.
Ii. Mechanism of Action of Sludge Enhancers in Deep Dewatering of Papermaking Sludge
In view of the characteristics of papermaking sludge, sludge enhancers achieve deep dewatering through the synergy of multiple actions. The core mechanisms include:
Disrupting colloid stability: The surfactants and charge neutralizing components in sludge enhancers can neutralize the charges on the surface of sludge particles, disrupt the stable state of the colloid system, cause fine particles to aggregate with each other, form larger flocs, and facilitate water separation. This role is particularly crucial for the stable colloidal system in the deinking sludge of waste paper, as it can effectively dismantle its structure.
Decomposition of organic sticky substances: Some sludge enhancers contain biological enzymes or chemical decomposition components, which can decompose the sticky substances in papermaking sludge caused by fiber residues and additives, reduce the viscosity of the sludge, and improve its fluidity and dewatering performance. The problem of high viscosity in pulping sludge caused by fibers can be effectively alleviated through this mechanism.
Promoting water migration: By altering the pore structure of sludge and increasing the internal drainage channels of sludge, bound water and capillary water can more easily migrate to the surface and be effectively removed under mechanical pressure. No matter what type of papermaking sludge it is, sufficient drainage channels are an important guarantee for achieving deep dewatering.
Strengthening the structure of the filter cake: The sludge enhancer can help form a filter cake with a stable structure and good air permeability, reduce the compression of the filter cake and the clogging of the filter cloth during the dewatering process, and improve the dewatering efficiency and the dryness of the filter cake. For papermaking sludge with high viscosity, a stable filter cake structure can prevent the filter cloth from being overly clogged and ensure the continuous progress of the dewatering process.
Iii. Specific Application Processes and Technical Key Points
In the deep dewatering of papermaking sludge, the application of sludge enhancers should follow a scientific process and focus on key technical points:
Sludge pretreatment: First, screen the papermaking sludge to remove the coarse impurities and avoid affecting the subsequent treatment. At the same time, make appropriate adjustments based on the pH value of the sludge, usually keeping the pH value between 6 and 8 to ensure that the enhancer achieves the best effect.
Dosage of sludge enhancer: Based on the nature of the sludge and the dewatering requirements, determine the appropriate dosage of sludge enhancer. Generally, the optimal dosage ratio is determined through small-scale tests. When adding, continuous stirring should be adopted to evenly mix the sludge enhancer into the sludge. The stirring time is usually 5 to 15 minutes to ensure that the agent reacts fully with the sludge. For high-viscosity pulping sludge, the stirring time can be appropriately extended to ensure uniform mixing of the reagents.
Selection and parameter optimization of dewatering equipment: In combination with deep dewatering equipment such as plate and frame filter presses and diaphragm filter presses, optimize the operating parameters of the equipment, such as pressure and pressing time, based on the characteristics of the sludge and the reaction of sludge enhancers. For instance, when using a plate and frame filter press to handle deinking sludge from waste paper, the pressure can be controlled at 0.8-1.2MPa, and the pressing time can be set at 40-60 minutes. When treating pulping sludge, the pressure can be slightly lower, controlled at 0.6-1.0MPa, and the pressing time should be 30-50 minutes to achieve a deep dewatering effect with the moisture content reduced to below 60%.

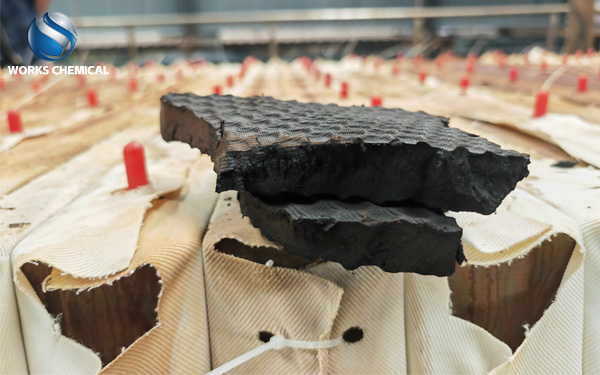

Subsequent disposal of mud cakes: The dehydrated mud cakes can be resourcefully utilized based on their composition, such as for brick-making and incineration for power generation. Due to the better stability of the sludge cake treated with the sludge enhancer and the reduced pollutant content, it provides convenience for subsequent disposal. The mud cake after dewatering of pulping sludge is more suitable for the production of building materials such as bricks due to its higher fiber content. The mud cake from the deinking sludge of waste paper can be incinerated after treatment, which can better utilize its heat.
Iv. Application Advantages and Actual Benefits
The application of sludge enhancers in the deep dewatering of papermaking sludge has demonstrated remarkable advantages and practical benefits:
The dewatering effect is remarkable: Compared with traditional methods, it can reduce the moisture content of papermaking sludge from over 95% to below 60%, or even lower, significantly reducing the volume of sludge and lowering transportation and disposal costs. For paper-making enterprises with large output, this advantage can bring obvious economic benefits.
Improving processing efficiency: It has enhanced the dewatering performance of sludge, reduced the clogging of filter cloth, prolonged the service life of filter cloth, shortened the dewatering cycle, and increased the processing capacity of equipment. After being applied in a certain paper mill, the filter cloth replacement cycle was extended from the original one week to three weeks, and the dehydration efficiency was increased by 40%.
Reduce processing costs: Although a certain amount of sludge efficiency enhancer costs need to be invested, the overall cost has been significantly reduced due to the decrease in equipment maintenance costs, the reduction in sludge disposal volume, and the realization of resource recycling and utilization. Take a medium-sized paper mill as an example. After using the sludge efficiency enhancer, the annual sludge disposal cost can be saved by hundreds of thousands of yuan, and the equipment maintenance cost has also been reduced by about 20%.
Meeting environmental protection requirements: Through deep dewatering, the risk of pollutant leakage in sludge is reduced. Meanwhile, some sludge enhancers have certain environmental protection characteristics and will not cause secondary pollution to the environment, which helps enterprises meet environmental protection discharge standards. In the current context where environmental protection policies are becoming increasingly strict, this advantage can help enterprises avoid environmental penalties and establish a good social image.
